		Austin Insulators Inc. suppliers of RF insulators and transformers since 1933

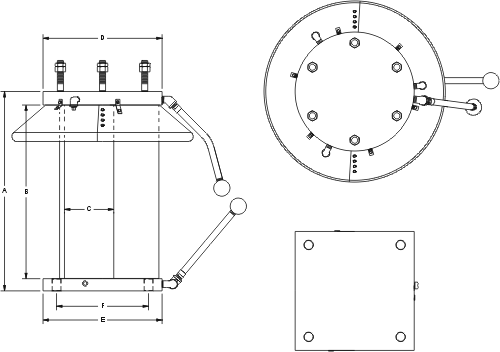

Products: Self Supporting Base Insulator TYPES: A-2812(-C) Profile Dimensions		Austin Base Insulators for Self Supporting Radio Towers and Masts TYPES A-2812(-C)

Dimensions

Type	A	B	C	D	E	F	Mast Fixing	Insulator Mounting	Net Weight
A-2812	36.75" 933 mm	32" 813 mm	9.375" 238 mm dia.	22" 559 mm dia.	22" 559 mm dia.		6 studs 5-3/4 " (146mm) long 1-1/8" (29mm) dia. 12 TPI on 18" (457mm) BCD	6 studs 5-3/4 " (146mm) long 1-1/8" (29mm) dia. 12 TPI on 18" (457mm) BCD	850 lb 386 kg
A-2812-C	36.75" 933 mm	32" 813 mm	9.375" 238 mm dia.	22" 559 mm dia.	22" 559 mm square	17" 432 mm	6 studs 5-3/4 " (146mm) long 1-1/8" (29mm) dia. 12 TPI on 18" (457mm) BCD	4 holes drilled 1-5/8" (41mm) square base	826 lb 375 kg

All Austin Insulator bases are designed for VLF, LF, and MF use, and are conservatively rated. Choose the unit that will meet your requirements for working download, working uplift, shear and RF operating voltage.
If you have a requirement which we do not seem to meet or you wish us to recommend a suitable insulator, please contact us and supply us with as much relevant information as possible.
